PVC Coated Roll Top Brc Fence

    • Product Name: PVC Coated Brc Fence
    • Size: Customizable
    • Height: 900mm
    • Width: 1000mm
    • Mesh Size: 50mm × 100mm
    • Wire Diameter: 3.0mm – 6.0 mm
    • Material: Low Carbon Steel Wire
    • Post Type: Square post, Round post, Peach post, I shape post
    • Place of Origin: Anping, Hebei, China.
    • Services: We can provide samples, inform customers of the progress by taking photos and recording videos during production to reassure customers, and update customers on market trends from time to time.
    • Download PDF

Product Description

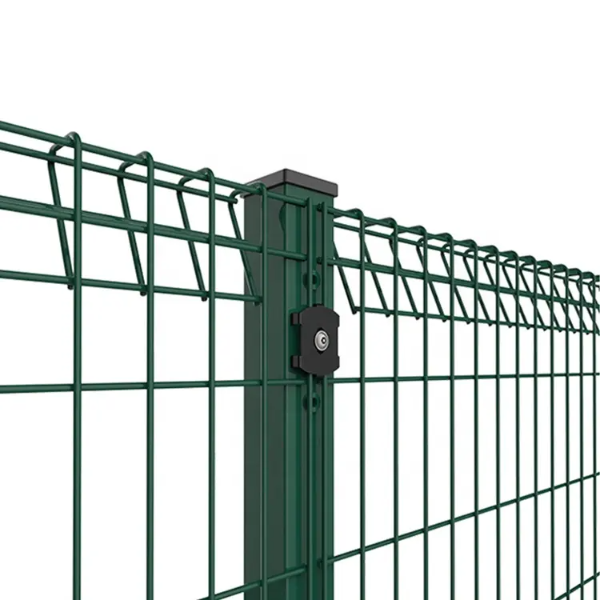

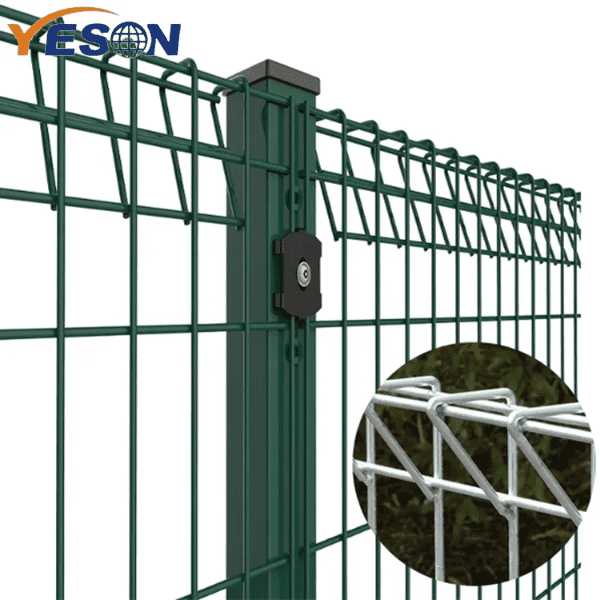

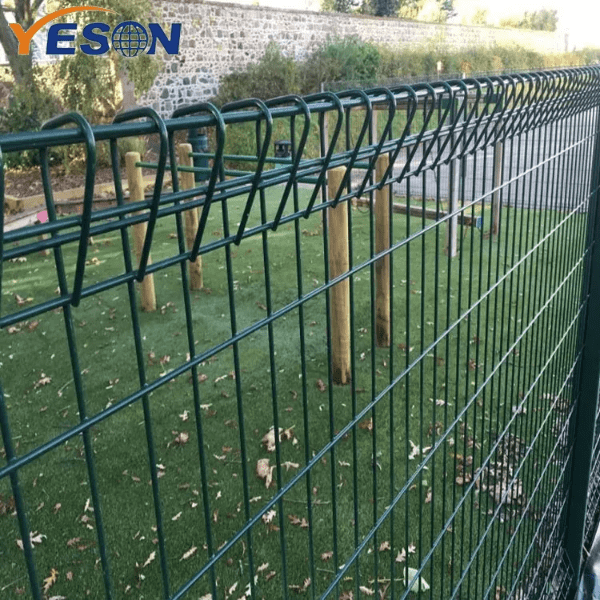

Roll top fence has a unique and user-friendly closed and rolled beam section at the top and bottom edge of each panel with no sharp or raw edges, usually made from heavy 5 mm wires, which results in maximum rigidity and better safety. It is suitable where safety is a consideration, such as schools, sports, parks and playgrounds, and company premises.

Roll top fence is also called BRC fence,the unique design ensures there are no protruding sharp edges. The panel is extremely rigid and with good see through visibility. This system is ideal where safety is paramount, creating an ideal for Parks and Recreational fencing, Playground fencing and School fencing. This roll top fence / BRC is very popular in Australia, Southeast Asia, Euro Market,etc.

Note: Whether in color or size, Anping YESON offers customization services. Besides, if you have any requirements for packaging, we will try our best to meet them. Please send us your real requirements and get the products to your satisfaction.

Product Show

Product Specification

PVC Coated BRC Fence Specification
MaterialLow carbon steel wire
Surface treatmentHot dipped galvanized (505 g/m2)
Electro galvanized (zinc coating: 8-12 g/m2) then PVC/PE coated (thickness: 0.8-1.2mm)
Electro galvanized (iznc coating: 8-12 g/m2) then polyester powder coating (thickness: 0.1mm)
Mesh opening (mm)50*150mm, 75*150mm etc.
Wire diameter3.0-6.0mm
Height (mm)900, 1200, 1500, 1800, 2100, 2400
Width (mm)1000, 1500, 2000, 2400, 2500, 3000
Post Type
Square post(mm)40×40; 50×50; 60×60; 80×80;thickness:1.2mm,1.5mm,2.0mm,2.5mm
Round post(mm)38, 48, 60, 75;thickness:1.2mm,1.5mm,2.0mm,2.5mm
Peach post(mm)50×70,  70×100;thickness: 1.2mm
I shape post(mm)70×44;thickness: 1.5mm

Surface Treatment

  • Black wire welded mesh + pvc coated;
  • Galvanized welded mesh + pvc coated;
  • Hot dipped galvanized welded mesh + pvc coated.

  (PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)

Post And Clamp System

PVC Coated Roll Top Brc Fence post

Product Installation

  • If the ground is muddy, you can directly buried the post into the ground, generally speaking, the depth of 40–50 cm is enough to stabilize the post, that is: the post need to be higher than brc fence panels at least 40–50 cm.
  • Next is to place the brc mesh panels between the posts and use the corresponding accessories to fix it. Here, it is necessary to ensure that there is no gap between the brc fence panel and post or only a very small gap, otherwise it will affect the use of accessories.
  • Finally install the rain cap on the top of the post. If you find it’s hard to install the rain cap because of the height of brc fence, you need to install the rain cap before fixing the posts and panels. If the rain cap is made of metal material and it has already welded on the post, you can do nothing.
  • In addition, if the ground is not mud but concrete, you can weld the flange at the bottom of the post and use M10 anchor bolts to fix the post and flange.InstallationInstallation 2

Features & Benefits

  • High visibility
    The high visibility of BRC fence allows you to show people your garden, and it has a good vision, the garden can be seen even at night.
  • Beautiful appearance
    The triangles’special design on the top and bottom makes it look more beautiful and more attractive, and it gives people a very comfortable feeling.
  • Flexibility
    Single panels can be easily replaced and the installation and removal are easy.
    Economical product. BRC fence is recyclable, and it is cheaper than 358 fence and palisade fencing.
  • Durable and low maintenance
    The surface treatment of hot dipped galvanized and polyester powder coating improve the durability of BRC fence, and it only needs very low maintenance.
  • Custom services
    Custom service is provided and we also offer different color options to harmonize it with the surroundings.

Product Application

  • Garden.
  • Port.
  • Parking lot.
  • School.
  • Pedestrian area.
  • Park.
  • Zoo.
  • Swimming pool.
  • Restaurant.
  • Hotel.
  • Supermarket.
  • Airport.
  • Residential.
  • Courtyard.
  • Farm.
  • Stadium.
  • Lake.
  • Playground.

Package & Delivery

  • Fence panel: metal/wooden pallet + bundle belt + plastic film. Here we place the BRC fence panels on the metal pallet one by one in order of face up and face down.
  • Fence post: they are also placed in the metal pallet according to the above steps. Each post also be individually packaged with plastic bags.
  • Fence accessories: they will be placed in carton box.PVC Coated Roll Top Brc Fencn Package
