Corral Panel Professional Supplier

HeBei Yeson Wire Mesh Products Co., Ltd. is a growing business that has over 30 years experience, specialising in Made Livestock Equipment including custom Horse, Cattle & Sheep livestock products delivered all over.

Portable Corral Panels with Solid Structure and Long Service Life

Corral panel, also known as livestock panel, is a kind of welded steel tube fence for cattle, horse, sheep and other livestock. Generally, it is made of square, oval or round tubes and have high strength and solid structure. It can sit directly on the ground for temporary or permanent fencing to keep cattle or sheep safe and free from wild animal attacks. We have cattle & sheep panels of different heights, lengths and number of rails for you to choose from.

Corral Panel Series

Applications

  • Farm fencing.
  • Stable fencing.
  • Shed fencing.
  • Camping fencing.
  • Fairs fencing.
  • Animal fencing.
  • Stall fencing.
  • House fencing.
  • Factory fencing.
  • Paddock fencing.
  • Equine arena fencing.
Storeroom welded horse fence
Factory travel corrals
Corral Panel Series 3
Horse fence on grassland
Pipe fence for horse fencing

Why you buy from us?

The styles can be diverse and customized according to customer requirements, or we can recommend suitable styles for you.

Corral Panel Series 32
Corral Panel Series 33
Corral Panel Series 34
Corral Panel Series 35
Corral Panel Series 36
Corral Panel Series 37

We have our own quality inspector ,which will check the quality and take pictures to you ,including after welding , after color coated , packing , loading the container.

Corral Panel Series 38
Corral Panel Series 39
Corral Panel Series 40
Corral Panel Series 31

A: Height:950 mm, 1000 mm, 1800 mm

B: Width:2100 mm, 2900 mm

C: Horizontal rail:Round rail (32 mm OD, 42 mm OD);
Square rail (40 × 40 mm, 50 × 50 mm); oval rail (30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 50 × 70 mm)

D: Vertical pipe:Round pipe (32 mm OD, 42 mm OD);
Square pipe (40 × 40 mm, 50 × 50 mm)

E: U lug

F: L lug

Table 1 Specification of Cattle Panels

Corral Panel Series 5
Round Rail Style
Height × Length1.8 m × 2.1 m, etc.
Horizontal rails32 mm OD, 42 mm OD (6 round rails), etc.
Vertical pipe32 mm OD, 42 mm OD, etc.
Thickness1.6 mm, 2.0 mm, etc.
MaterialPre hot dipped galvanized steel pipe
Accessories4 lugs, 2 rain caps are welded on panels. 2 pins are included in one panel.
Corral Panel Series 6
Square Rail Style
Height × Length1.8 m × 2.1 m, etc.
Horizontal rails40 × 40 mm, 50 × 50 mm (6 square rails), etc.
Vertical pipe40 × 40 mm, 50 × 50 mm, etc.
Thickness1.6 mm, 2.0 mm, etc.
MaterialPre hot dipped galvanized steel pipe
Accessories2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Oval Rail with Square Post Style
Height × Length1.8 m × 2.1 m, etc.
Horizontal rails30 × 60 mm, 40 × 80 mm, 42 × 115 mm, 50 × 100 mm (6 oval rails), etc.
Vertical pipe40 × 40 mm, 50 × 50 mm, etc.
Thickness1.6 mm, 2.0 mm, etc.
MaterialPre hot dipped galvanized steel pipe
Accessories2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Round tube with bent bottom base
Height5 ft, 6 ft, 2.0 m ,etc.
Width9 ft, 10 ft, 12 ft, etc.
Frame & Rail Round Tube32 mm, 42 mm, etc.
Thickness1.6 mm, 2.0 mm, etc.
AccessoriesWelded parts: U lugs, rain caps, bases, pins
Surface treatmentHot dipped galvanized, galvanized + powder coated

Table 2 Specification of Sheep Panels

Round Tube Style
Height × Length0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m
Horizontal rails32 mm OD, 42 mm OD (5 or 6 round rails)
Vertical pipe32 mm OD, 42 mm OD
Thickness1.6 mm, 2.0 mm
MaterialPre hot dipped galvanized steel pipe
Accessories4 lugs, 2 rain caps are welded on panels. 2 pins are included in one panel.
Corral Panel Series 10
Square Tube Style
Height × Length0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m
Horizontal rails40 × 40 mm, 50 × 50 mm (5 or 6 square rails)
Vertical pipe40 × 40 mm, 50 × 50 mm
Thickness1.6 mm, 2.0 mm
MaterialPre hot dipped galvanized steel pipe
Accessories2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.
Corral Panel Series 11
Square Tube Style
Height × Length0.95 m × 2.1 m, 1 m × 2.1 m, 1 m × 2.9 m
Horizontal rails40 × 40 mm, 50 × 50 mm (5 or 6 square rails)
Vertical pipe40 × 40 mm, 50 × 50 mm
Thickness1.6 mm, 2.0 mm
MaterialPre hot dipped galvanized steel pipe
Accessories2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panels. 2 pins are included in one panel.

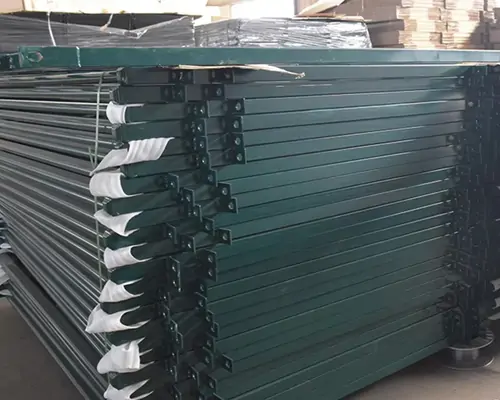

Corral Panel Packing & Container loading

YESON Happy Clients

Since 1998, YESON has served clients in over 70 countries and regions. It’s growing business partnerships and also friendships with our clients. Contact our specialists for any wire mesh solution.

FAQs

Can I come to China for Factory inspection?

Of course, you are welcome to visit our factory or offices in different cities anytime. Now we also support ZOOM or WeChat for online factory inspection.

Can I have a sample to check first?

Yes, we do offer raw materials samples or small trail sample order for you to check. Just tell our specialists of the details and they’ll help you about it.

Are you trading company or manufacture?

We are factory – nearly 30 years of experience for production, and morethan 25 years of exporting experience.

How long is your delivery time?

Generally it is 7 days if the goods are in stock. And 30-40 days if OEMit is according to the quantity.

How can l know my order progress?

Production and packages photos will be supplied and confirmed with you before loading.

What is the most important feature of your products?

Since we have an independent design team(10+ members), we accept all forms of customization, you just give us ideas or even just a word, and we can manufacture your ideal product for your market.
