Weld BRC Fence

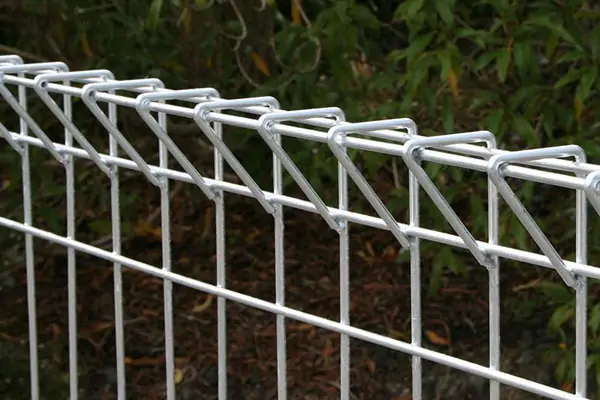

BRC fence is also known as roll-top fence. It is featured by the triangular bending structure at both the top and bottom of the fence. The smart design is not only a decoration improvement in appearance but also provides horizontal support between posts to achieve solid stability.

ISO9001:2015 | Verified | SGS

Roll Top BRC Fence Series

Real BRC Fence Manufacturer

Hebei YESON is a reliable supplier for durable and customizable BRC fences.
We offer fences of different heights, wire diameters and mesh openings to suit your respective needs.

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Surface Treatment
According to the surface treatment, our BRC fence can be divided into two types as shown below.
Roll Top BRC Fence Series 7

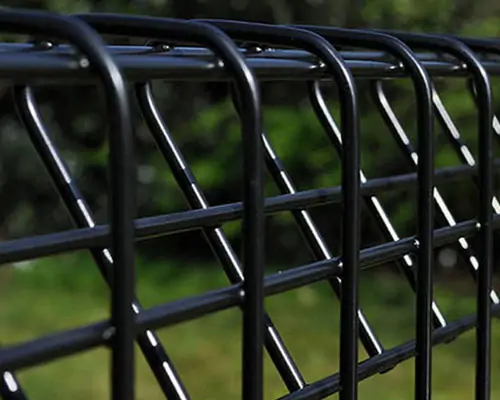

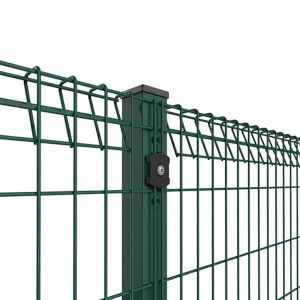

Powder coating BRC fence

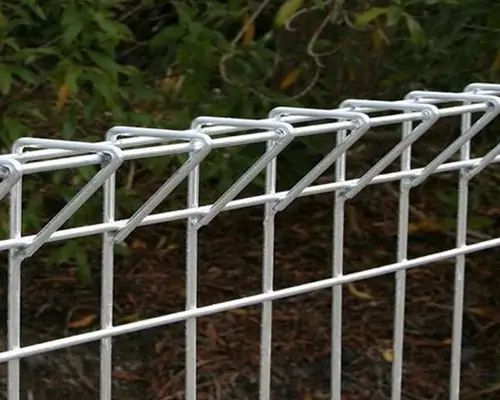

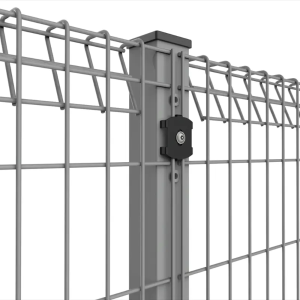

Galvanized BRC fence

Accessories: post and clamp system

Post

  • Material: square steel pipe, round steel pipe.
  • Surface treatment: electric galvanized, hot dipped galvanized, polyester powder coating.
  • Thickness: 1.5, 2.0, 2.5 mm.
  • Height: according to the panel height.
  • Type: round post, square post.
Roll Top BRC Fence Series 1
BRC fence with round post.
Roll Top BRC Fence Series 2
BRC fence with square post.
Dimension
  • Round post diameter: 48, 60 mm.
  • Square post size: 50 × 50, 60 × 60 mm.
Roll Top BRC Fence Series 3
Square post cap.
Roll Top BRC Fence Series 4
Metal V clamp for connecting round post and brc fence.
Clips are connection parts of post and brc fence.
Roll Top BRC Fence Series 6
Screws and nuts.
Roll Top BRC Fence Series 9
Steel Wire
Roll Top BRC Fence Series 10
Welding
Roll Top BRC Fence Series 11
Bending
Powder Coating
Package & Delivery
The specific way of placing a lot of brc fence panels on the pallet.
Brc fence panels are tightly packaged to prevent damage during transit.
Roll Top BRC Fence Series 15
The accessories of brc fence are usually placed in cartons during translation to prevent the loss of small accessories.
The post also wrapped tightly by plastic film, pallet and bundle belts and other packaging material.
  • Roll top edges provides both beautiful appearance and rigid structure.
  • Welded joints ensure the firm structure and long service life.
  • High quality raw materials and galvanized and powder coating treatment ensure our BRC fence has excellent corrosion and rust resistance performance and great weatherproof performance.
  • The mesh opening of the BRC fence panels provides excellent visibility and security.
  • All colors are available in Ral to adapt to most environments.
  • Less maintenance and long service life.
Roll Top BRC Fence Series 24
Step 01

Measure and mark the post location as per the panel width Dig holes for posts. In common, the post is 500mm longer than panel. So 300*300*500mm is ok.

Step 02

Install the post with concrete. Each post must be set perfectly plum in the concrete.

Roll Top BRC Fence Series 26
Step 03

Install 1 panel to post with clips.

Roll Top BRC Fence Series 27
Step 04

Install the second post with concrete. Each post must be set perfectly plum in the concrete

Roll Top BRC Fence Series 28
Step 05

Fix the fence, The cement will set in a few hours

Welded BRC Fence Specifications

Roll Top BRC Fence Series 23

A.Height:900–2400 mm

B.Width:1500–3000 mm

C.Wire Diameter:4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm

D.Mesh Opening:50 × 150 mm, 50 × 200 mm, 50 × 300 mm

E.Clamp:metal clamp / anti-UV plastic clamp

F.Post:Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

G.Post Cap:metal cap/anti-UV plastic cap

More Wire Fence Solutions

Applications for Welded BRC Fence Panel

gas stations
Roll Top BRC Fence Series 18
decorate courtyard
residential communities
amusement parks
agriculture
Roll Top BRC Fence Series 22
facilities

YESON Happy Clients

Since 1998, YESON has served clients in over 70 countries and regions. It’s growing business partnerships and also friendships with our clients. Contact our specialists for any wire mesh solution.

Trusted Partner for 30+ Years

With years of experience in the industry, we have earned a reputation as a trusted partner for wholesalers worldwide. You can count on us to deliver on promises and support your business growth from all ends.

3D Fence Panel Series 8

Excellent Support

We offer prompt full-sales support, maintenance services, and technical guidance whenever needed.

Double Wire Fence Series 21

Competitive Pricing

Our cost-effective wholesale pricing structure and competitive rates give you a competitive edge.

358 Anti Climb Fence Series 6

Effortless Shipping

We ensure secure packaging, reliable transportation, and smooth logistics for hassle-free imports.

Double Wire Fence Series 20

Installation Guide

We offer a variety of installation options for your fence project, including post in ground or concrete, and post stand.

Double Wire Fence FAQs

Welded Wire Mesh Panel Series 9
Can I have a sample to check first?

Yes, we do offer free samples or small trial orders for you to check. Just inform our specialists of the details, and they’ll assist you with it.

Yes, we have been in providing the professional products in fence field for 30 years.

Yes, as long as provide specifications, drawings can only do what you want products.

Usually within 15-20 days , customized order may need longer time.
