Press Locked Steel Grating

Category Tag
  • Product Name: Press Lock Steel Grating
  • Size: Customizable
  • Length: 3000mm
  • Thickness: 0.12mm – 1.50mm
  • Cross Bar Pitch: 50mm – 100mm
  • Material: Galvanized Sheet, Stainless Steel
  • Place of Origin: Anping, Hebei, China.
  • Services: We can provide samples, inform customers of the progress by taking photos and recording videos during production to reassure customers, and update customers on market trends from time to time.

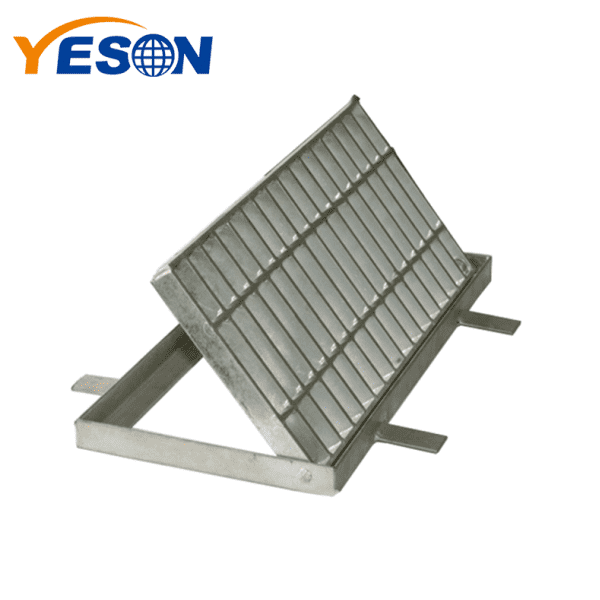

Press-locked steel grating also can be called pressure locked grating, it is made of low carbon steel or stainless steel. With the performance of high bearing capacity, non-slip, anti-corrosion and easy to install and remove, pressure locked grating is widely used for ceilings, platforms, floors, fence and all kinds of cover in the factories, civil and commercial buildings.

Note: Whether in color or size, Anping YESON offers customization services. Besides, if you have any requirements for packaging, we will try our best to meet them. Please send us your real requirements and get the products to your satisfaction.

Product Show

Steel Grate
Steel Grating MaterialFlat-rolled steel:Choose Mild steel, stainless steel, aluminum alloy steel
Cross Bar:Choose Q235A or 304 stainless steel twisted square steel, round steel, flat steel, etc.
Flat Bar Surface ShapeFlat type, serrated type, I-beam type, I-beam tooth type
Flat bar specificationThickness:3mm and 5 mm
Height:25 mm,30 mm,32 mm,38 mm,40 mm,45 mm,50 mm,60 mm
Cross bar specificationCommon specifications are 5×5,6×6,8×8 mm
Flat bar spacingThe distance between the centers of two adjacent loaded flat bars, commonly 30 mm, 40 mm, 60 mm.
Cross bar spacingThe distance between the centers of two adjacent cross bars is 50 mm,100 mm.
Length of steel grating plateGeneral steel grating length ≥ 800mm, large span platform using length 3000 – 10000mm.
Surface treatmentElectro-galvanized, hot-dip galvanized, painted, dipped in anti-rust oil

Product Type

Steel Grating Type

Product Features

  • Light weight. high bearing capability and high strength.
  • Non-silp. anti-corrosion.
  • Not easy to deform
  • Beautiful appearance.
  • Easy to install and remove.
  • Extended the lifespan.

Product Application

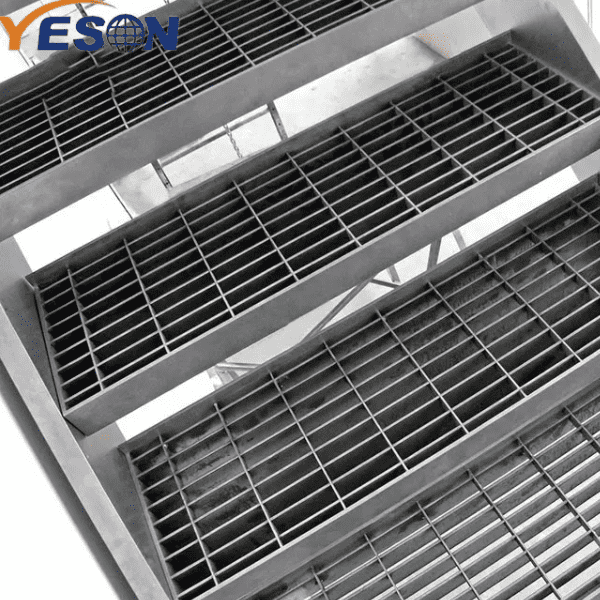

Press-locked steel grating is widely used for the floor, ceiling, platform, fence, shelf, decoration of outer wall, sun visor, bridge and inner and spiral staircases in such place:
  • Large-scale shopping malls.
  • Construction industry.
  • Factories. subway stations.
  • Offshore drilling platforms.
  • Ships.
  • Terminals.
  • Other industrial and civil construction.Steel Grating Application

Product Package

  • Strap packing: Generally used for neat press locked steel grating.
  • Pallet packing: Generally for the press-locked steel grating which need to export and load in container.
  • Screw rod fixation: Use four screw rods through the mesh and fixed with screws.Steel Grating Package
